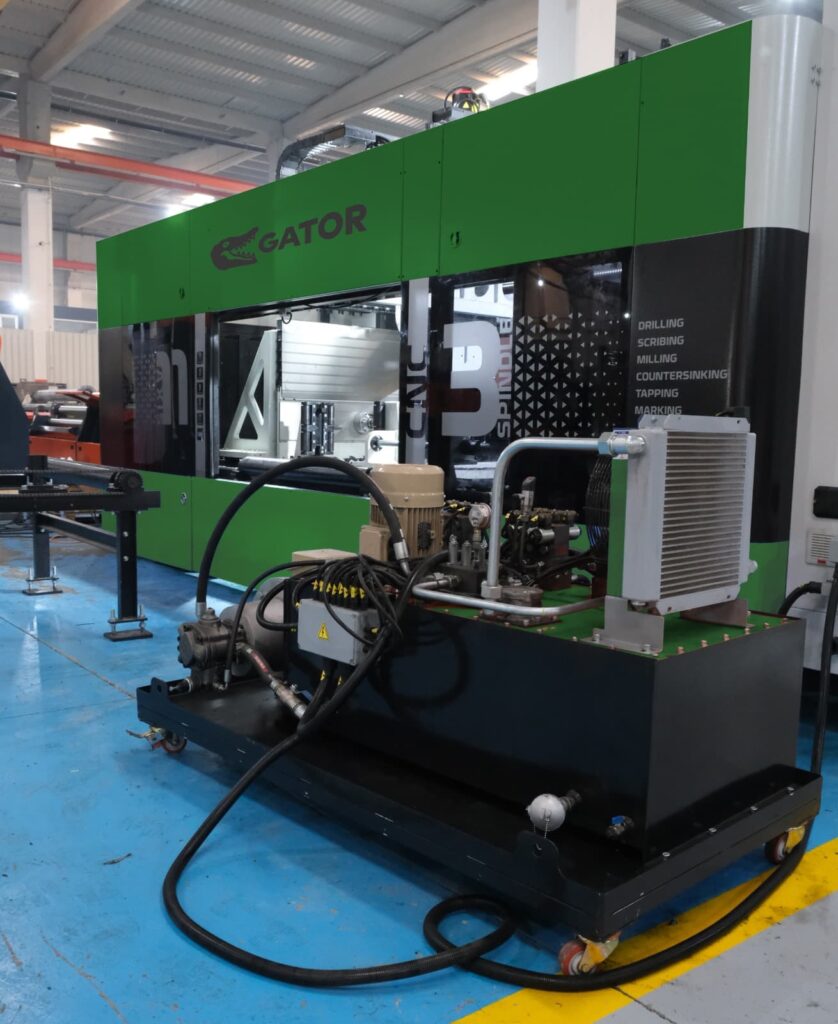

GATOR BEAMX 3X 1200 – 3 Spindle CNC Beam Drilling Machine
Product Description
BEAMX 3X 1200
3 SPINDLE CNC BEAM DRILLING MACHINE WITH 20″/500mm SUB-AXIS

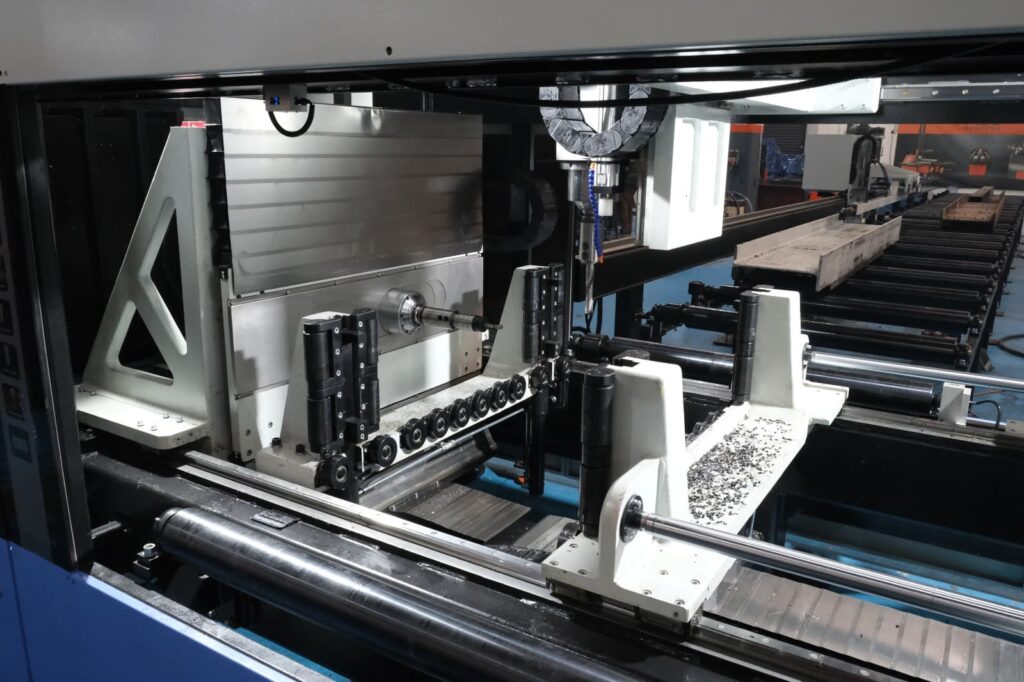

The independent motion feature enables multiple operations to be carried out simultaneously: while one side of the flange is being machined, other operations (such as drilling, marking, tapping, milling, etc.) can be performed independently at the same time on the profile web and the opposite flange.
Capabilities:

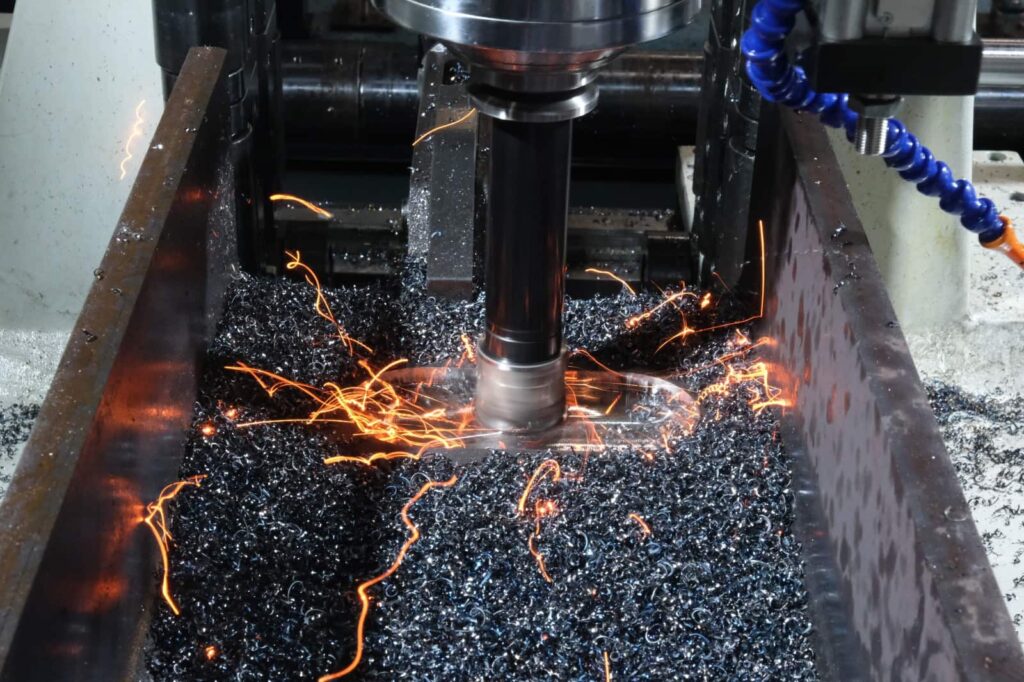

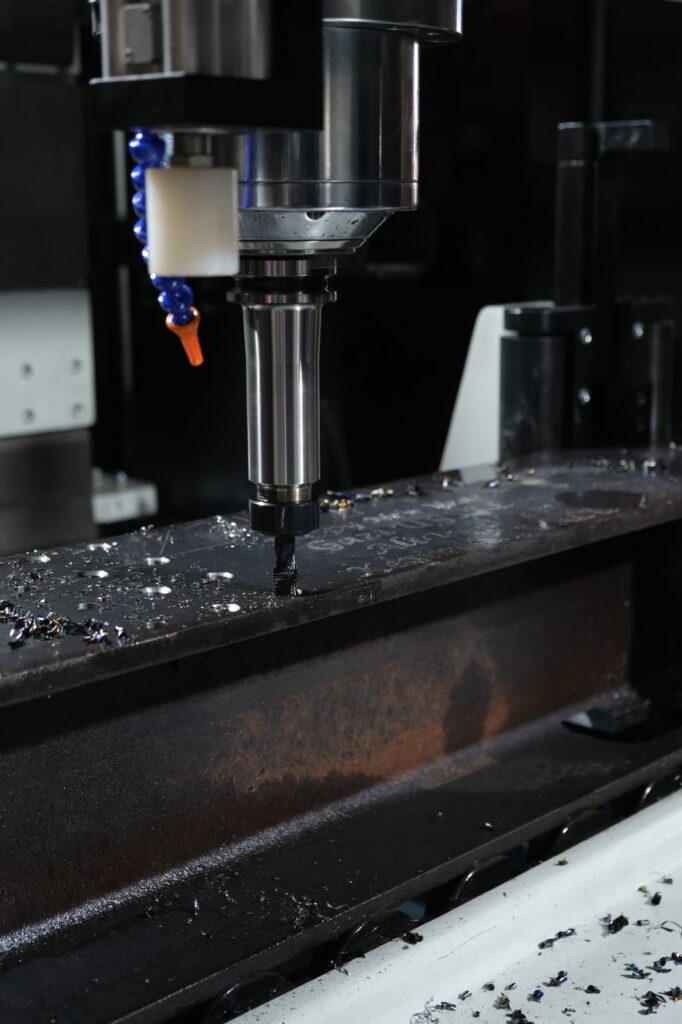

- Drilling
- Writing
- Milling
- Countersinking
- Tapping
- Scribe Marking
PUSHING BOUNDARIES WITHOUT BREAKING THE BUDGET
Interested in this product?
Get in touch with our experts for pricing and availability.
- 3x Drilling Tool Set (Ø16-18-20mm or as requested)
- FANUC CNC Controller
- LANTEK® Flex Steel Work SD Plus Nesting Software
- Chip Conveyor
- Automatic Tool and Material Measurement
- Automatic Centralized Lubrication System
- Infeed & Outfeed Conveyors (12m/40′ + 12m/40′)
- Minimum Quantity Lubrication (MQL) for Tool Cooling

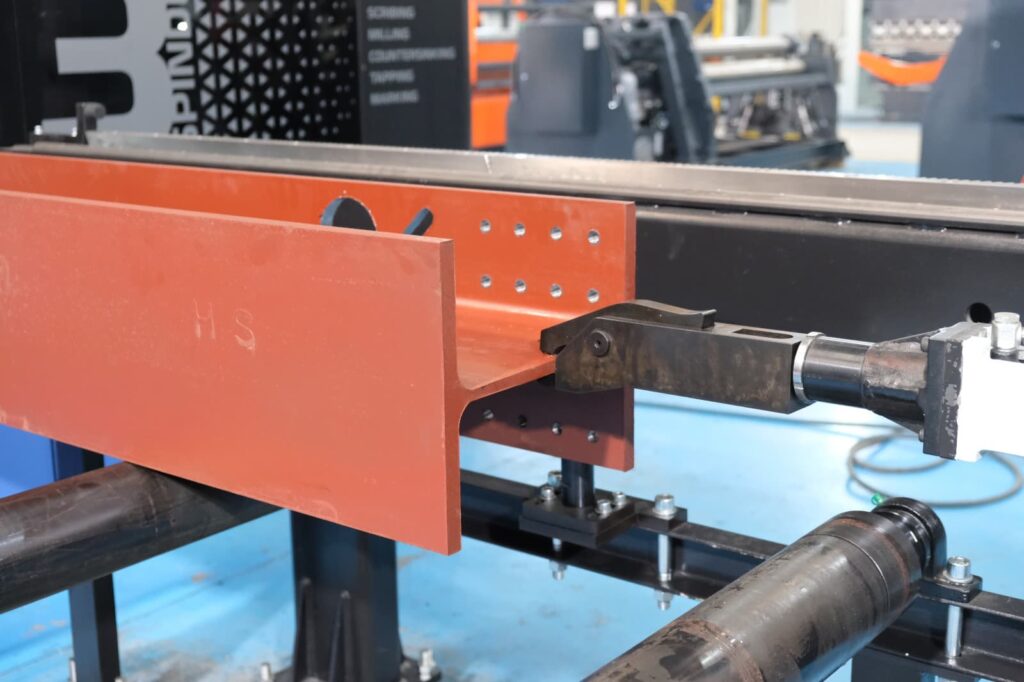

- Remote Control Feeding Arm
- Air Conditioner for Electrical Cabinet
- Mitre Bandsaw Integration
- Disc Marking System
- Customized Length And Layout According To Customer Request
| Specification | Value |
|---|---|
| Maximum Beam Profile Width | 1200 mm |
| Number of Spindles | 3 |
| Sub-Axis Travel Range | 20″ / 500 mm |
| Standard Tool Sizes | Ø16 – Ø18 – Ø20 mm |
| Infeed/Outfeed Track Length | 12m / 40′ each |
Related Products
Discover more products in the same category
STRUCTURAL STEEL

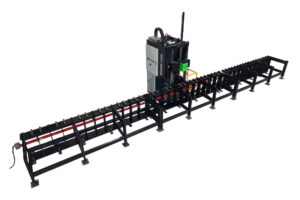

BEAMX Single Spindle CNC Drill Line
