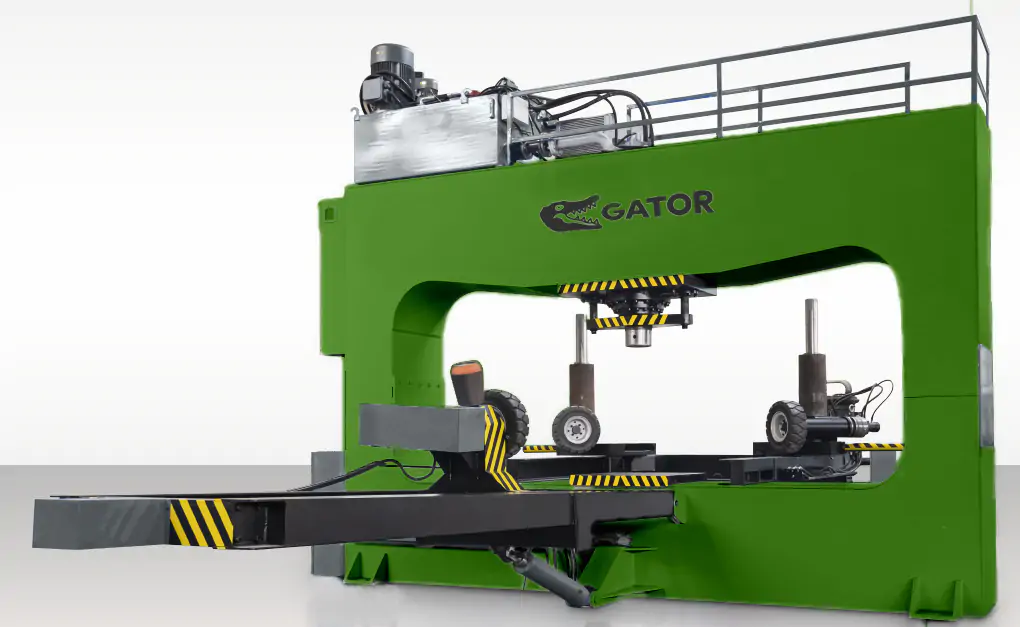

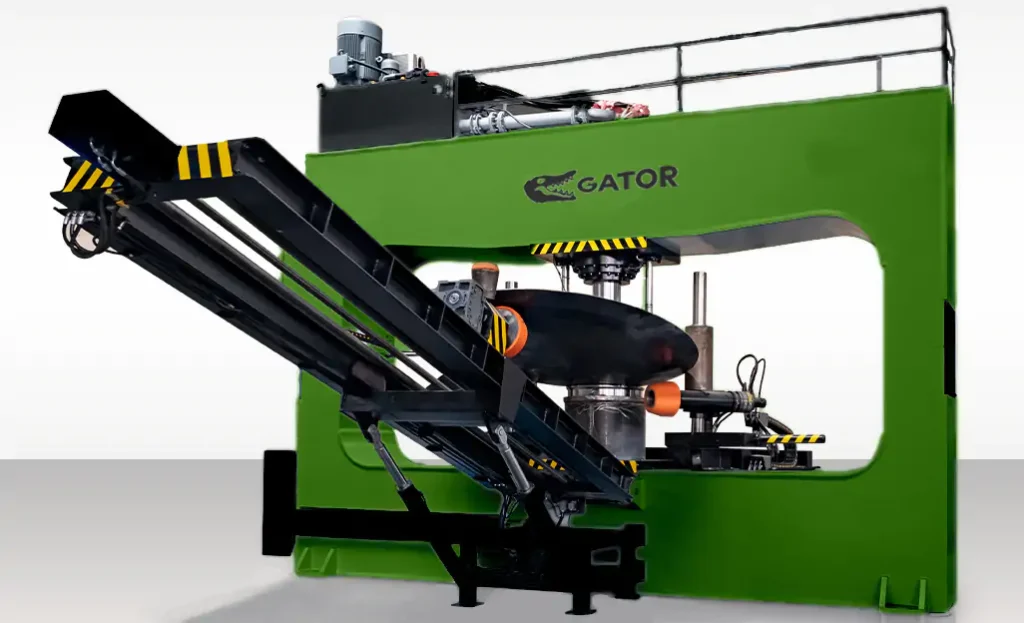

GDP Hydraulic Dishing Press And Manipulator System

These machines utilize advanced hydraulic systems to perform the main pressing functions while controlling manipulator movements with high accuracy.

Key specifications include:

• Pressing Power
• Columns Distance
• Maximum Pressure
• Motor Power
• Dimensions and Weight

This information helps you select the right machine for your specific production scale and the type of rolled steel plate you will use.

• Structural Integrity: The manipulator hydraulics are designed for dishing the heads, with upper and lower beams connected by robust construction. The portal frame features hydraulic extension tie rods, providing exceptional resistance and flexibility while minimizing frame deformation.
• Efficiency: Automatic manipulators enable simultaneous processing of multiple plates, optimizing production time and enhancing product quality.
• Precision Control: Integrated NC system synchronizes all machine motions, ensuring high accuracy and maximizing productivity.

• Digital Control System: The system utilizes proportional valves for precise pressure control, allowing operators to select optimal speeds for each processing step.
• Rigidity and Durability: Over engineered and welded machine frames minimizes the risk of deflection and distortion.
• Safety Features: The machine includes a pressure pre-relief unit to reduce hydraulic shock and is compliant with EC Safety Directives. An emergency button is readily accessible for enhanced safety.

The Hydraulic Dishing Press with Manipulator System is versatile and ideal for:

• Sheet Metal Processes: Drawing, bending, and forming.
• High-Tech Materials: Production of thin ceramics, tungsten alloys, and Teflon parts.
• Dished Types: Capable of manufacturing Tank Dish, Torispherical Dish, Elliptical Dish, Elliptical-Ellipsoidal, and Flat Dish types as per industry requirements.

This robust machine design ensures long-lasting performance and reliability across a variety of applications.
