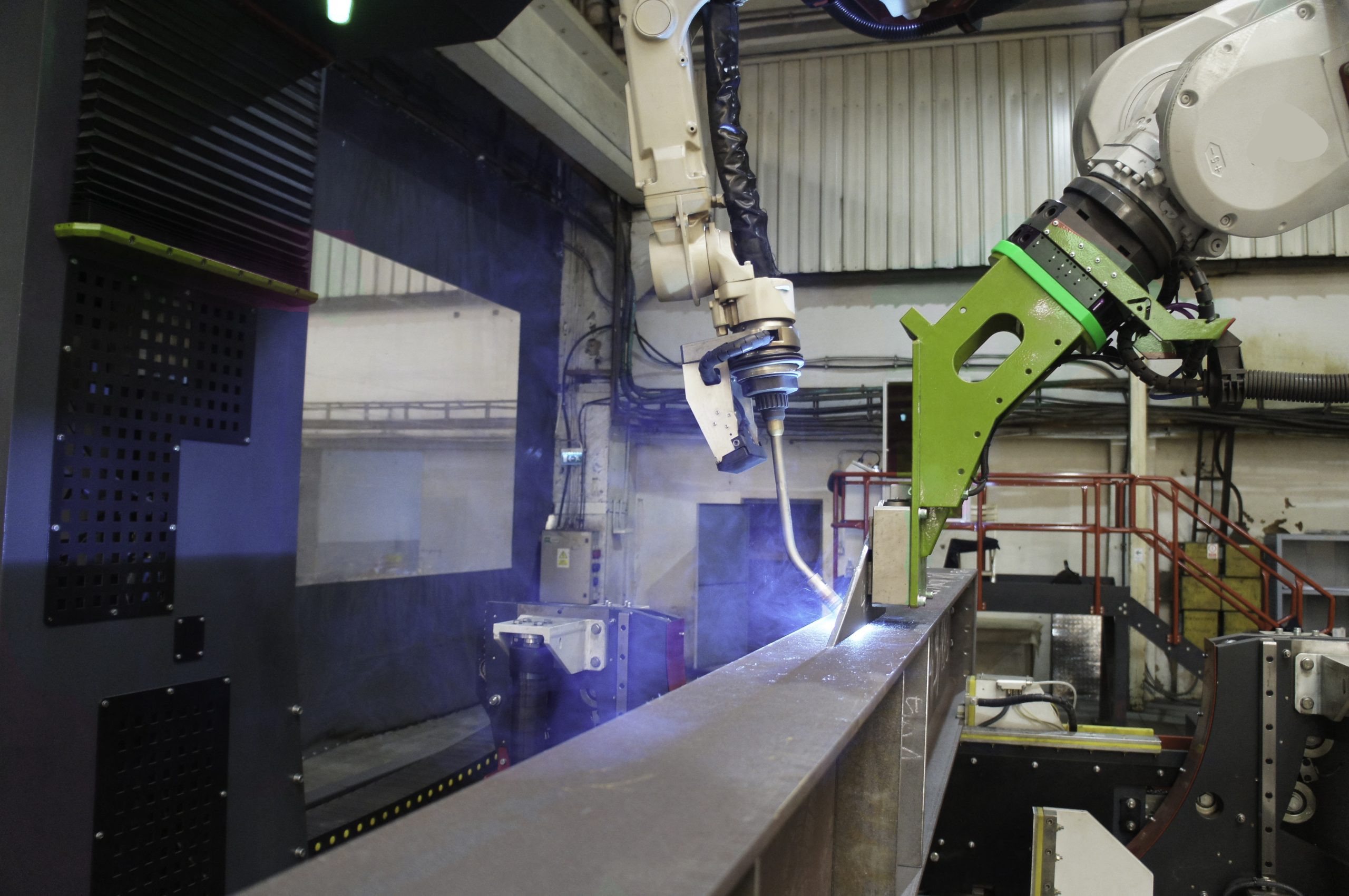

Fixtures create the repeatable datum and joint presentation that a robotic welding program expects; weld access determines whether the programmed sequence is physically practical. The machine should be evaluated inside the complete shop workflow. This guide uses the published Gator FabTech equipment structure and avoids assuming capacities or outcomes that are not shown on the relevant product pages.
Start with welding automation equipment, BEAGLE robotic welding for structural steel, welding positioners, 3-axis welding positioner. Final configuration should be confirmed against current drawings, material, production targets, utilities, safety requirements and installation conditions.
How the Process Works
Robotic structural welding depends on repeatable parts, controlled fit-up, suitable fixtures, accessible weld joints and a stable material-handling plan. The robot is one component of a cell that also includes part presentation, welding equipment, safety, programming, inspection and changeover.
| Process element | Role in the workflow |
|---|---|
| Datum | Locate each part from surfaces or features that remain controlled through fabrication. |
| Clamping | Hold the assembly without blocking welds or creating avoidable distortion. |
| Variation | Define acceptable gap, mismatch and component tolerance before programming. |
| Access | Check torch angle, stickout, cable path and collision clearance. |
| Changeover | Design fixture families and setup verification for the required production mix. |
Recommended Workflow Sequence
- Step 1: Release repeatable weldment data.
- Step 2: Load and locate the part in a fixture.
- Step 3: Confirm joint access and welding sequence.
- Step 4: Execute programmed welding with controlled part orientation.
- Step 5: Inspect, unload and prepare the next assembly.
The exact order can change by part family. Document the normal route and an exception route for rework, short parts, remnants, unusual geometry or maintenance downtime.
Workflow and Integration Questions
- Part families and batch sizes.
- Joint types and weld access.
- Fixture and datum strategy.
- Positioning or rotation requirements.
- Welding process and consumables.
- Safety, guarding and fume control.
- Inspection, rework and changeover.
These questions are useful because they connect the equipment decision to the full route. They also give Gator FabTech enough context to identify whether the visible product configuration is a fit or whether project-specific options must be reviewed.
How to Validate Fit Before Ordering
Begin with a controlled sample of parts that reflects the real production mix. For this topic, pay particular attention to datum and clamping. A maximum value by itself does not show how the equipment will handle common parts, difficult features, changeovers, short runs or exceptions.
- Review typical, maximum, minimum and exception drawings as separate groups.
- Mark every requirement as mandatory, optional or future so the quotation scope stays clear.
- Confirm material movement with realistic stock and finished-part lengths on the proposed layout.
- Identify the inspection points and the data that prove each operation was completed correctly.
- Document acceptance parts, training responsibilities, maintenance access and the process for future changes.
Do not build the decision around an assumed percentage improvement, a fixed cycle-time promise or an automatic return on investment. Compare the present workflow with the proposed route using information the shop can verify: handling steps, queue locations, repeated layouts, rework causes, staffing, floor-space constraints and the number of part families that can follow a controlled program.
Related Gator FabTech Equipment and Resources
- Review welding automation equipment for the current public product or category information.
- Review BEAGLE robotic welding for structural steel for the current public product or category information.
- Review welding positioners for the current public product or category information.
- Review 3-axis welding positioner for the current public product or category information.
- Use the machinery catalog to review adjacent processes.
- Check equipment videos and catalogs for available product media.
- Review equipment financing or contact Gator FabTech with your application details.
Related Technical Guides
- Beam Coping for Connection and Fit-Up Preparation
- Robotic Welding for Structural Steel Buyer’s Guide
- Structural Steel Robotic Welding Cell Readiness Checklist
- Beam Rotators and Positioners for Structural Welding
Frequently Asked Questions
What information should be prepared first?
Prepare representative drawings, material and section data, required operations, production mix, current workflow, available floor space and the process that follows this equipment.
Can a published capacity table confirm every application?
No. Published values help screen equipment, but final fit should be confirmed against current drawings, material, tooling, process requirements, site conditions and the ordered configuration.
Why include material handling in the equipment decision?
Loading, transfer, buffering, unloading and part identity determine whether the machine supports a controlled production route or creates a new queue around the equipment.
