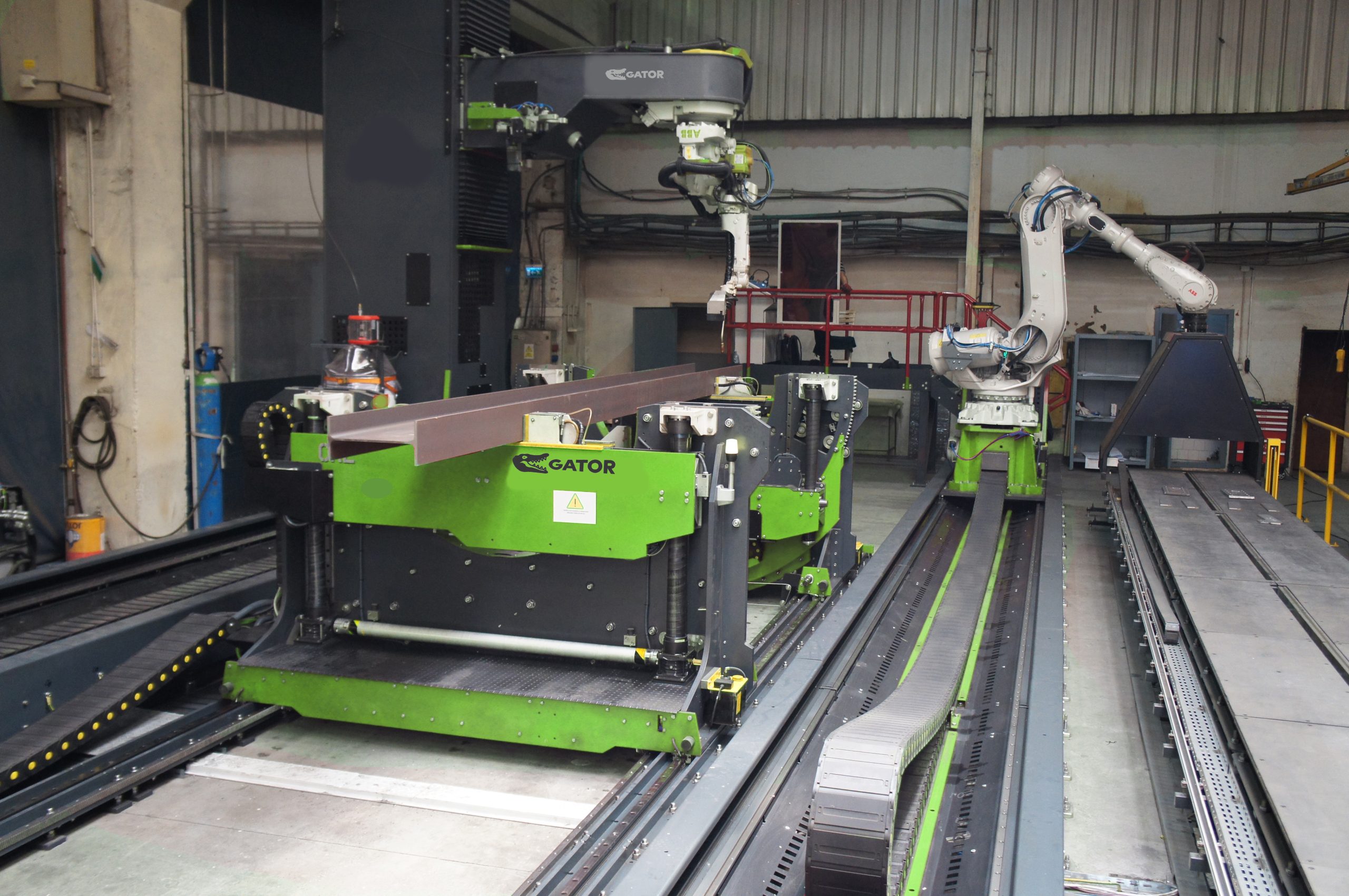

Beam rotators and positioners improve part orientation and weld access when the workpiece, center of gravity, fixture and required motion are matched to the equipment. A useful comparison separates published capability from project-specific configuration. This guide uses the published Gator FabTech equipment structure and avoids assuming capacities or outcomes that are not shown on the relevant product pages.
Start with welding automation equipment, BEAGLE robotic welding for structural steel, welding positioners, 3-axis welding positioner. Final configuration should be confirmed against current drawings, material, production targets, utilities, safety requirements and installation conditions.
Where This Approach Fits
Robotic structural welding depends on repeatable parts, controlled fit-up, suitable fixtures, accessible weld joints and a stable material-handling plan. The robot is one component of a cell that also includes part presentation, welding equipment, safety, programming, inspection and changeover.
| Fit indicator | How to evaluate it |
|---|---|
| Rotators | Beam rotators can support controlled rotation of compatible long structural weldments. |
| Positioners | Three-axis positioners can rotate, tilt and lift compatible workpieces. |
| Selection data | Provide weight, dimensions, center of gravity, fixture size, required axes and duty cycle. |
| Integration | Coordinate motion control, grounding, cable management and robot or welding-system interface. |
| Safety | Loading, restraint, guarding and failure modes must be reviewed for the final application. |
Where Additional Review Is Needed
- The part family changes frequently and representative drawings are not available.
- The material route is not defined or finished parts have no controlled discharge area.
- Required operations are described broadly but not tied to actual features.
- Site constraints, utilities or safety requirements are still unknown.
- The expected result depends on an unverified productivity, tolerance or payback assumption.
Workflow and Integration Questions
- Part families and batch sizes.
- Joint types and weld access.
- Fixture and datum strategy.
- Positioning or rotation requirements.
- Welding process and consumables.
- Safety, guarding and fume control.
- Inspection, rework and changeover.
These questions are useful because they connect the equipment decision to the full route. They also give Gator FabTech enough context to identify whether the visible product configuration is a fit or whether project-specific options must be reviewed.
How to Validate Fit Before Ordering
Begin with a controlled sample of parts that reflects the real production mix. For this topic, pay particular attention to rotators and positioners. A maximum value by itself does not show how the equipment will handle common parts, difficult features, changeovers, short runs or exceptions.
- Review typical, maximum, minimum and exception drawings as separate groups.
- Mark every requirement as mandatory, optional or future so the quotation scope stays clear.
- Confirm material movement with realistic stock and finished-part lengths on the proposed layout.
- Identify the inspection points and the data that prove each operation was completed correctly.
- Document acceptance parts, training responsibilities, maintenance access and the process for future changes.
Do not build the decision around an assumed percentage improvement, a fixed cycle-time promise or an automatic return on investment. Compare the present workflow with the proposed route using information the shop can verify: handling steps, queue locations, repeated layouts, rework causes, staffing, floor-space constraints and the number of part families that can follow a controlled program.
Related Gator FabTech Equipment and Resources
- Review welding automation equipment for the current public product or category information.
- Review BEAGLE robotic welding for structural steel for the current public product or category information.
- Review welding positioners for the current public product or category information.
- Review 3-axis welding positioner for the current public product or category information.
- Use the machinery catalog to review adjacent processes.
- Check equipment videos and catalogs for available product media.
- Review equipment financing or contact Gator FabTech with your application details.
Related Technical Guides
- Robotic Welding for Structural Steel Buyer’s Guide
- Structural Steel Robotic Welding Cell Readiness Checklist
- Fixtures, Repeatability and Weld Access in Robotic Welding
- Structural Steel Machinery Installation Checklist
Frequently Asked Questions
What information should be prepared first?
Prepare representative drawings, material and section data, required operations, production mix, current workflow, available floor space and the process that follows this equipment.
Can a published capacity table confirm every application?
No. Published values help screen equipment, but final fit should be confirmed against current drawings, material, tooling, process requirements, site conditions and the ordered configuration.
Why include material handling in the equipment decision?
Loading, transfer, buffering, unloading and part identity determine whether the machine supports a controlled production route or creates a new queue around the equipment.
Discuss Your Structural Steel Application
Send representative drawings, material sizes, required operations, production mix and available floor space through the Gator FabTech contact page. The final equipment configuration, capacity and integration scope should be confirmed during the quotation process.
